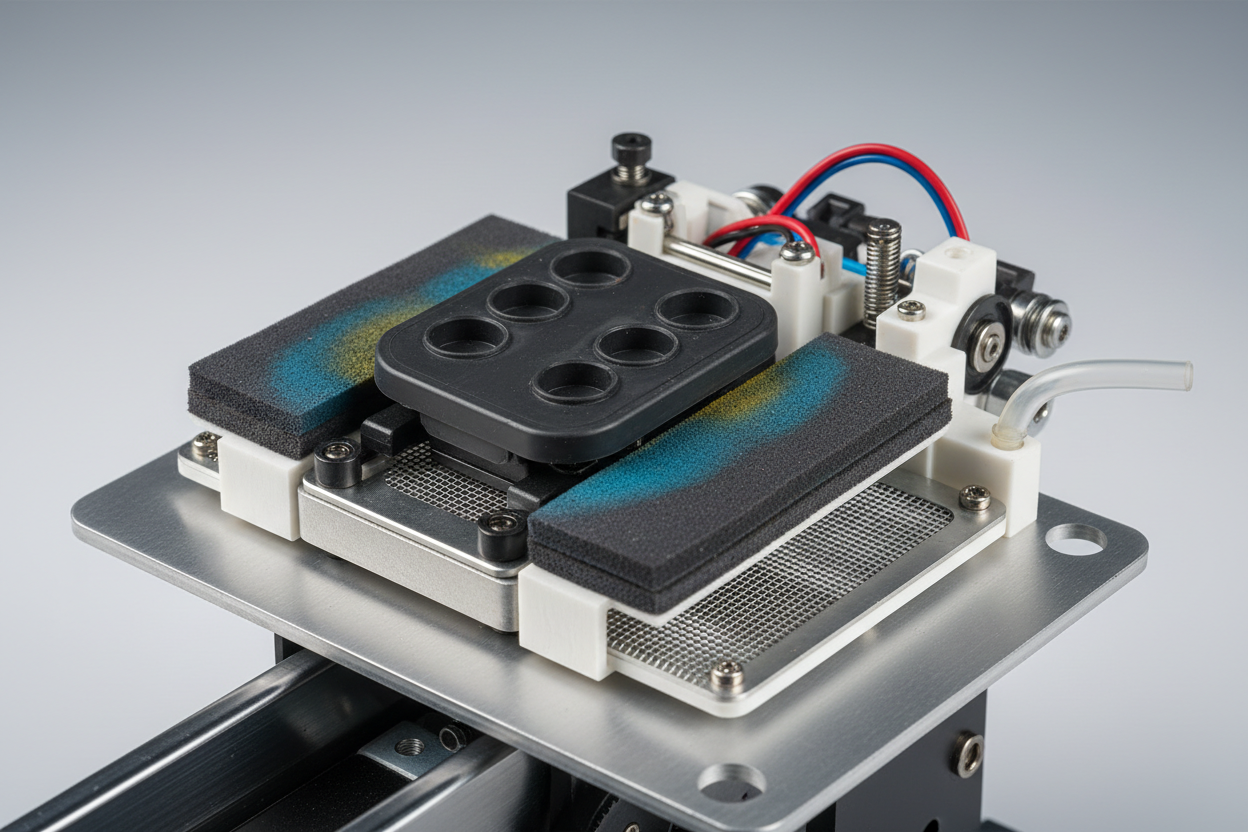

DTF Printhead Capping Station
System reliability in high-speed DTF printing depends on a few critical components. The Epson I3200 capping station is perhaps the most important part of your printer’s maintenance ecosystem. This assembly serves as the "home base" for your printhead, protecting the delicate nozzle plate when the machine is not in use. A malfunctioning cap can lead to immediate ink dehydration and permanent nozzle damage. Understanding how this component functions will help you extend the lifespan of your expensive I3200 heads significantly.
If you want to add an eye-catching sparkle to your customized products, our Glitter DTF Transfers collection is the perfect choice to elevate your designs. These specialized transfers combine the vibrancy of standard prints with a shimmering texture, providing an impressive look especially for dance costumes, sports jerseys, and fashion-forward streetwear. Thanks to their soft feel and high wash resistance, you can achieve brilliant, long-lasting results without worrying about glitter shedding.
The Airtight Seal Function
Precision engineering ensures that the rubber gasket of the cap fits perfectly against the printhead surface. When the carriage returns to its home position, the station rises to create a vacuum-sealed environment.
Preventing Ink Dehydration
Exposing pigment-based DTF inks to open air causes them to thicken and solidify within minutes. The capping station traps moisture around the nozzles to keep the ink in a liquid state during standby mode. This humid environment is essential for a "first-time" successful print after the machine has been sitting overnight. If the seal is compromised by debris or wear, you will likely experience "missing nozzles" during your morning test print. To prevent this, using a specialized DTF printhead cleaner is vital to keep the seal area pristine and moist.
Facilitating the Cleaning Cycle
Maintenance pumps rely on the capping station to create suction for ink priming. During a "Head Clean" command, the station forms a tight grip, allowing the pump to pull fresh ink through the nozzles. This process removes air bubbles and flushes out any microscopic particles that could cause banding. Without a perfect seal, the pump cannot generate the necessary pressure, rendering the cleaning cycle ineffective.
Common Issues and Signs of Failure
Identifying problems early can save you from costly hardware replacements. You should regularly inspect the station for signs of physical degradation or ink buildup.
- Hardened Ink Deposits: Residual white ink can settle on the rubber rim, preventing a proper seal.
- Worn Out Gaskets: Constant movement can eventually cause the rubber to tear or lose its elasticity.
- Clogged Drain Lines: If the waste tubes beneath the cap are blocked, old ink will overflow and contaminate the printhead.
- Spring Malfunctions: A weak lift mechanism might fail to push the cap high enough to touch the head.
DTF Printer Maintenance Workflow
Maintaining a regular maintenance routine is the easiest way to prevent 90% of common printhead failures. Follow these step-by-step instructions daily to ensure your capping station forms a flawless airtight seal:
- Move the Printhead: Move the printhead carriage away from the home position to safely access the maintenance area.
- Prepare Your Supplies: Take a fresh, lint-free maintenance swab and moisten it generously with a premium DTF cleaning solution. Never use aggressive solvents, water, or standard alcohol, as they can cause the rubber gasket to crack or swell.
- Wipe the Rubber Gasket: Gently run the moistened swab around the top rubber edges of the capping station. Ensure you remove all residual white ink buildup, debris, and lint.
- Clean the Inside Cap: Gently press the swab into the inner basin of the cap to loosen up any accumulated pigment ink.
- Flush the Lines: Drop a few milliliters of the cleaning solution directly into the cap and ensure it drains smoothly through the waste lines. If it pools, your tubes may be partially clogged.
- Reset to Home: Once fully cleaned, return the printhead carriage back to the home station to lock in the seal overnight.
Essential Maintenance Tips
Longevity is achieved through a disciplined cleaning routine. Avoid using aggressive solvents that could cause the rubber to swell or crack over time. Additionally, ensuring that your waste ink tank is not overfilled will prevent backpressure from damaging the station. Small, consistent efforts in cleaning the capping area with proper supplies will keep your machine running without unexpected downtime.
Conclusion
The Epson I3200 DTF Printhead Capping Station is the silent guardian of your printer's performance. By maintaining a clean and functional seal, you ensure that your printhead remains in peak condition for thousands of prints. High-volume shops should consider the capping station a consumable item and replace it annually to avoid unexpected downtime. Focus on the details today to keep your business running smoothly tomorrow.
