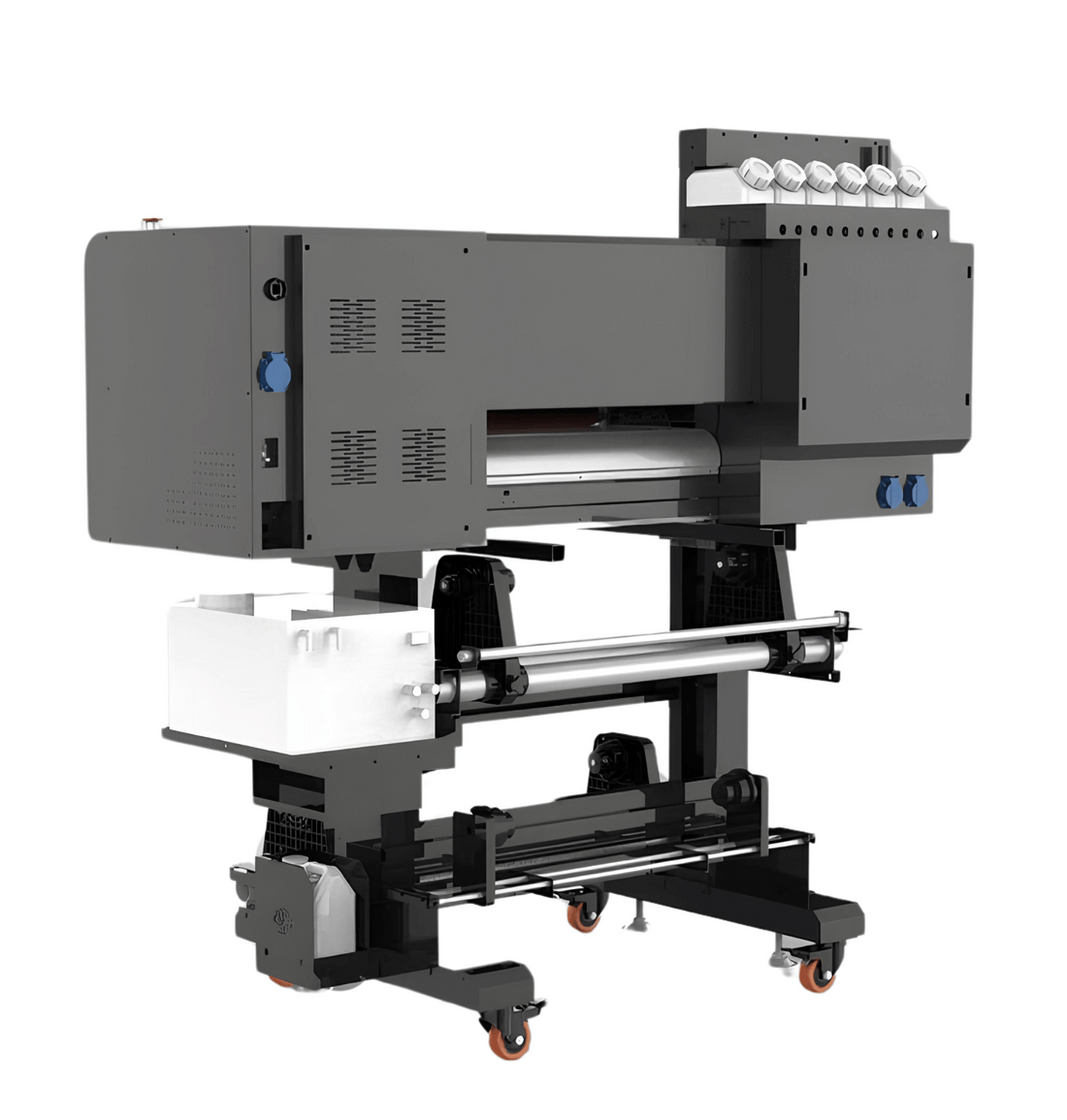

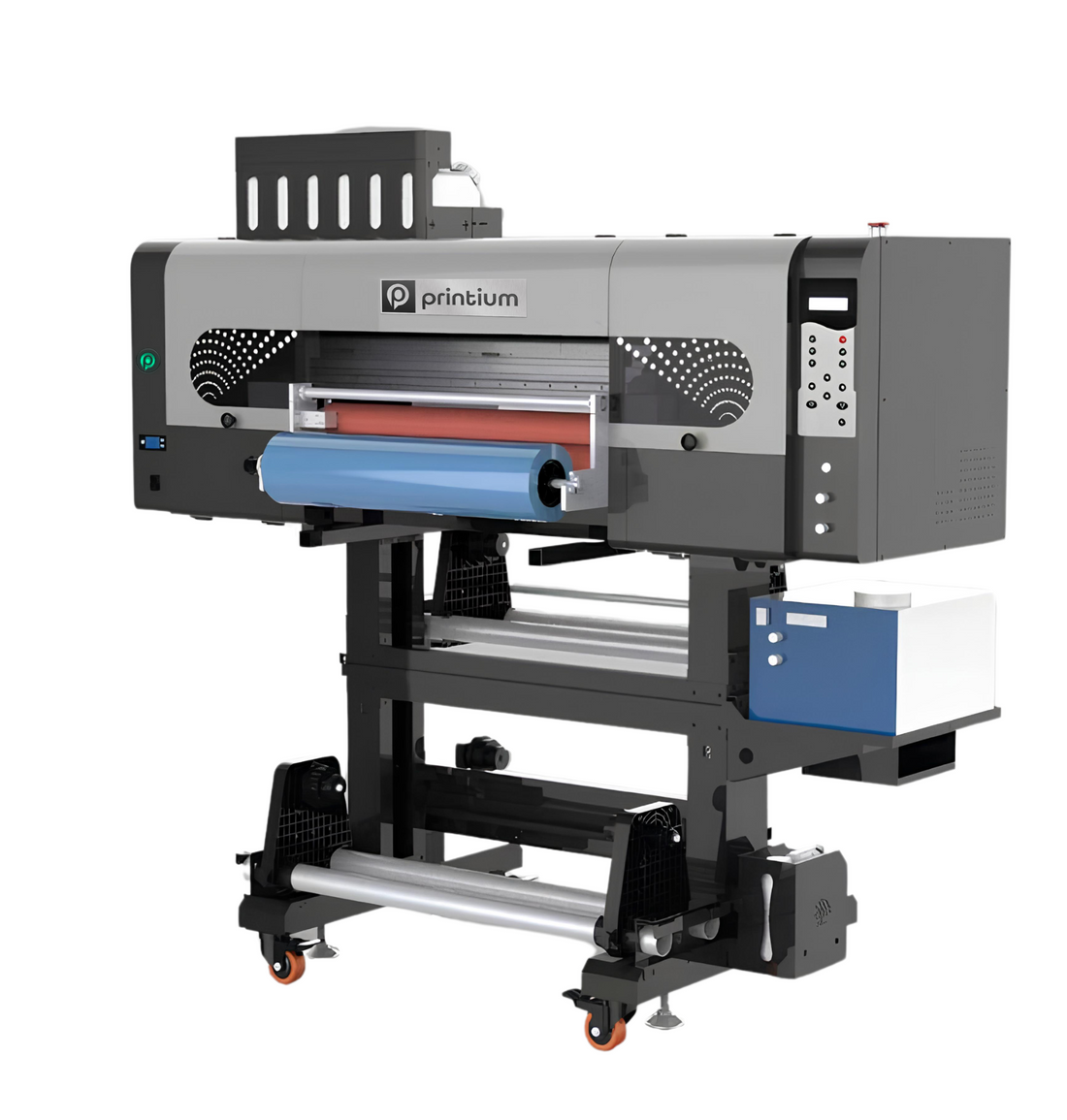

P604U - UV DTF Printer

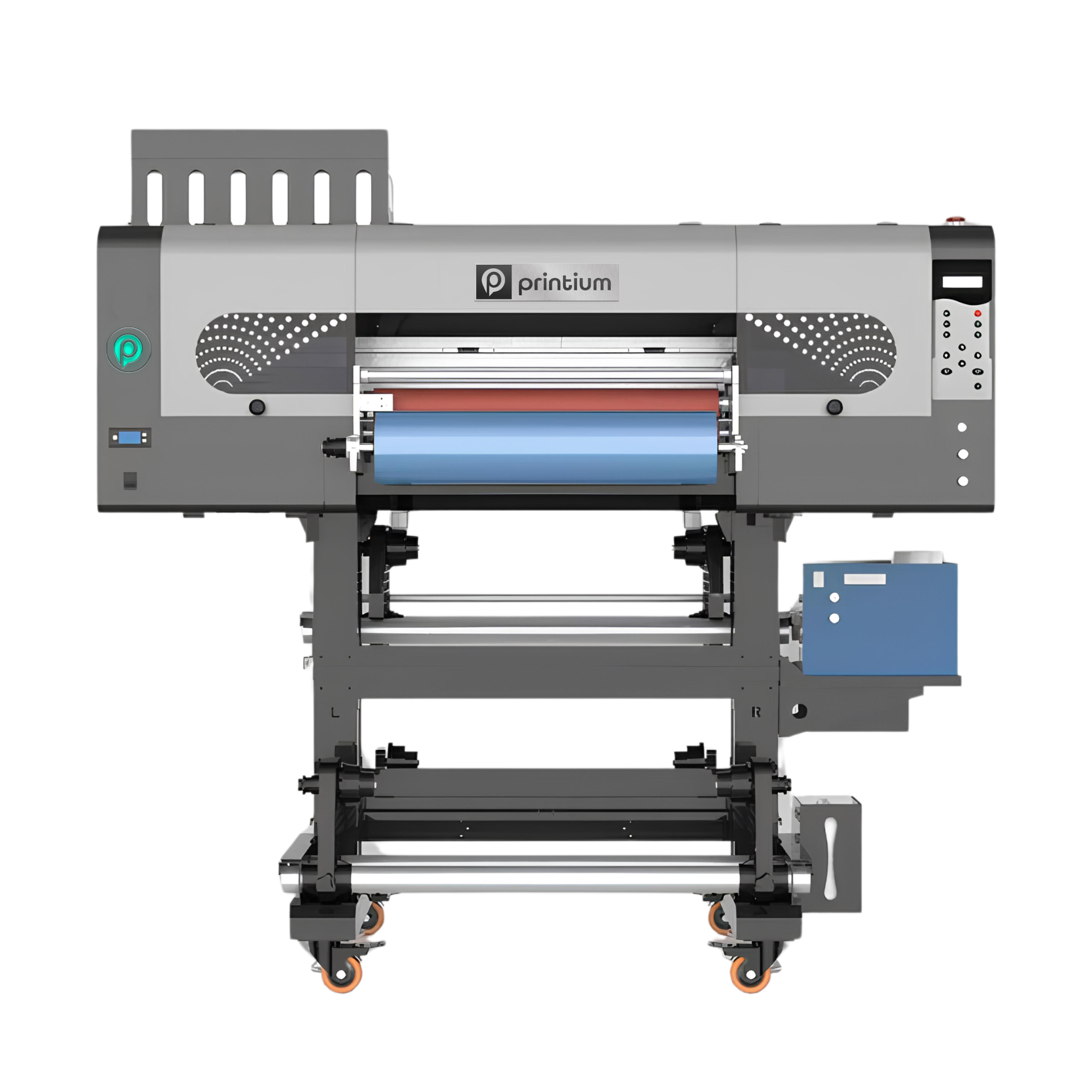

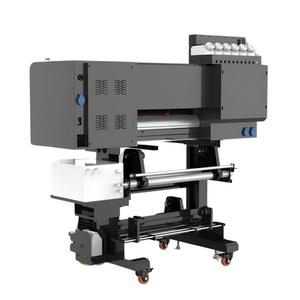

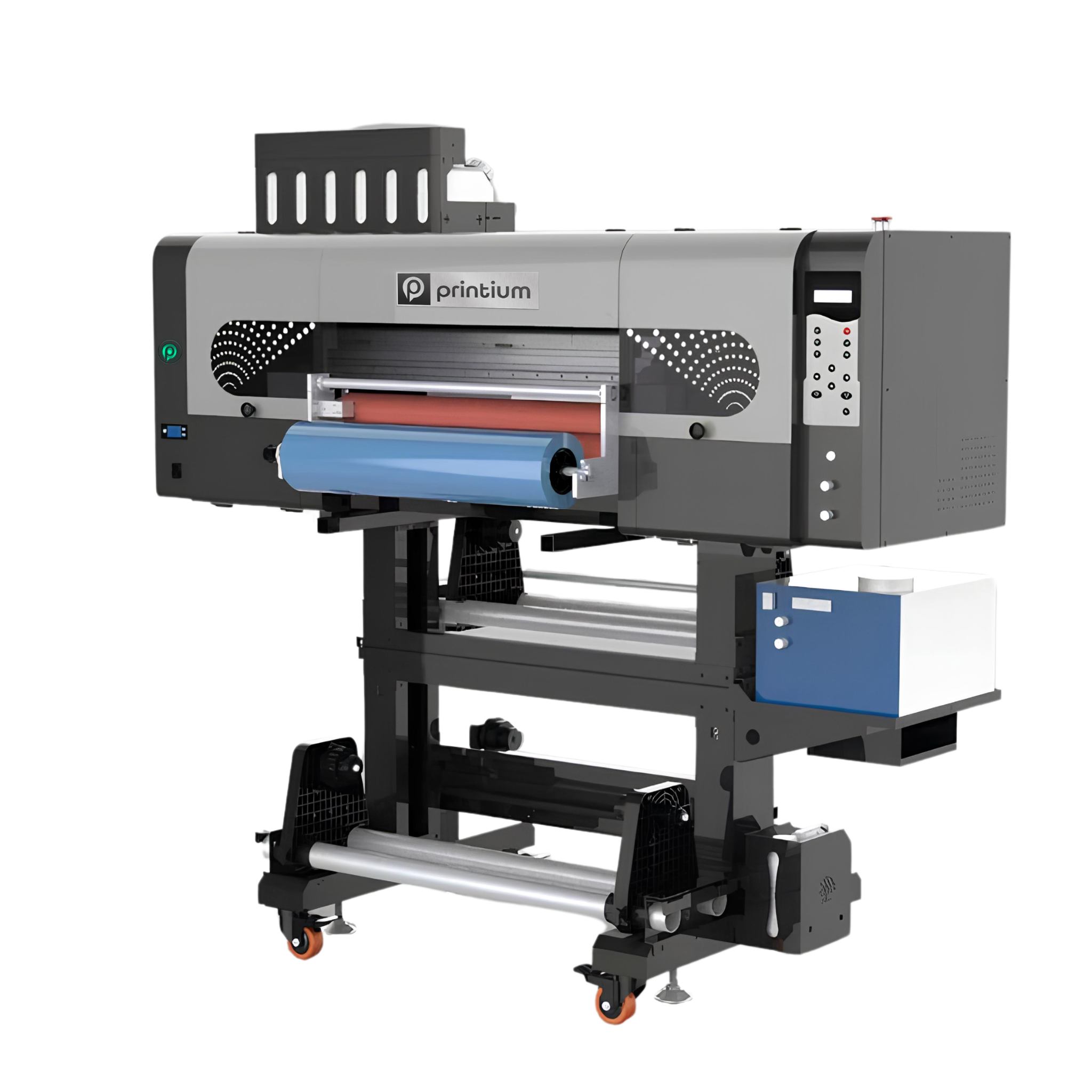

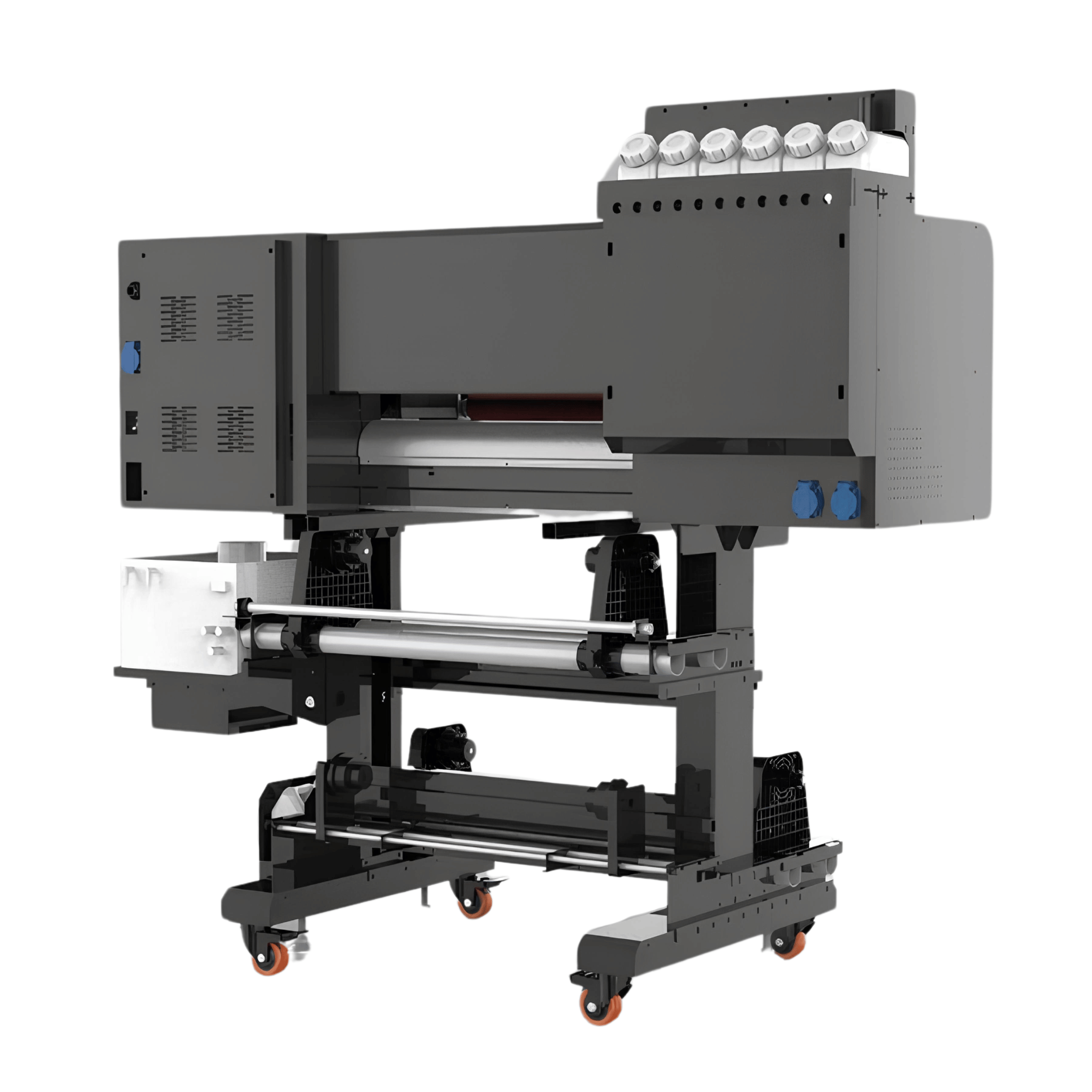

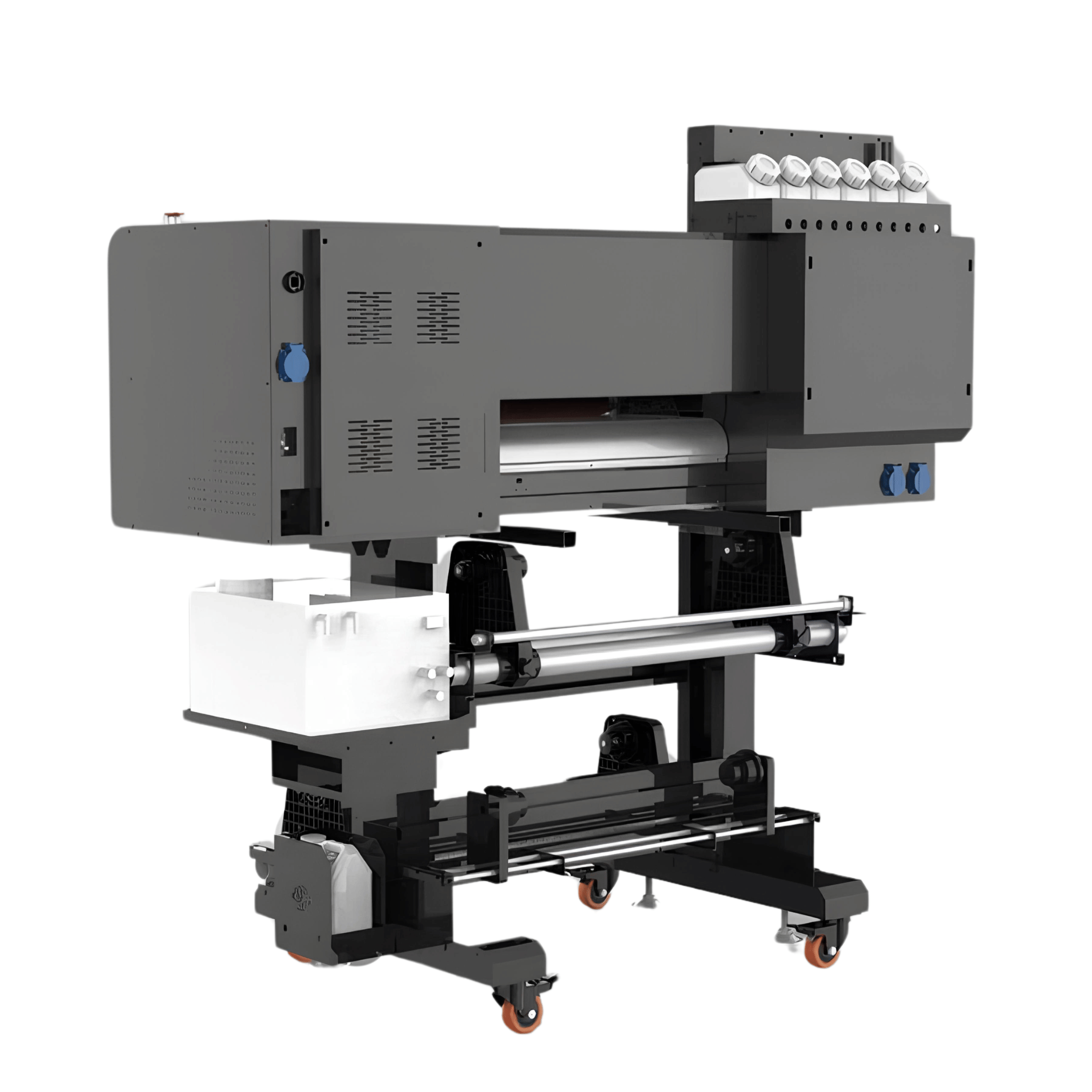

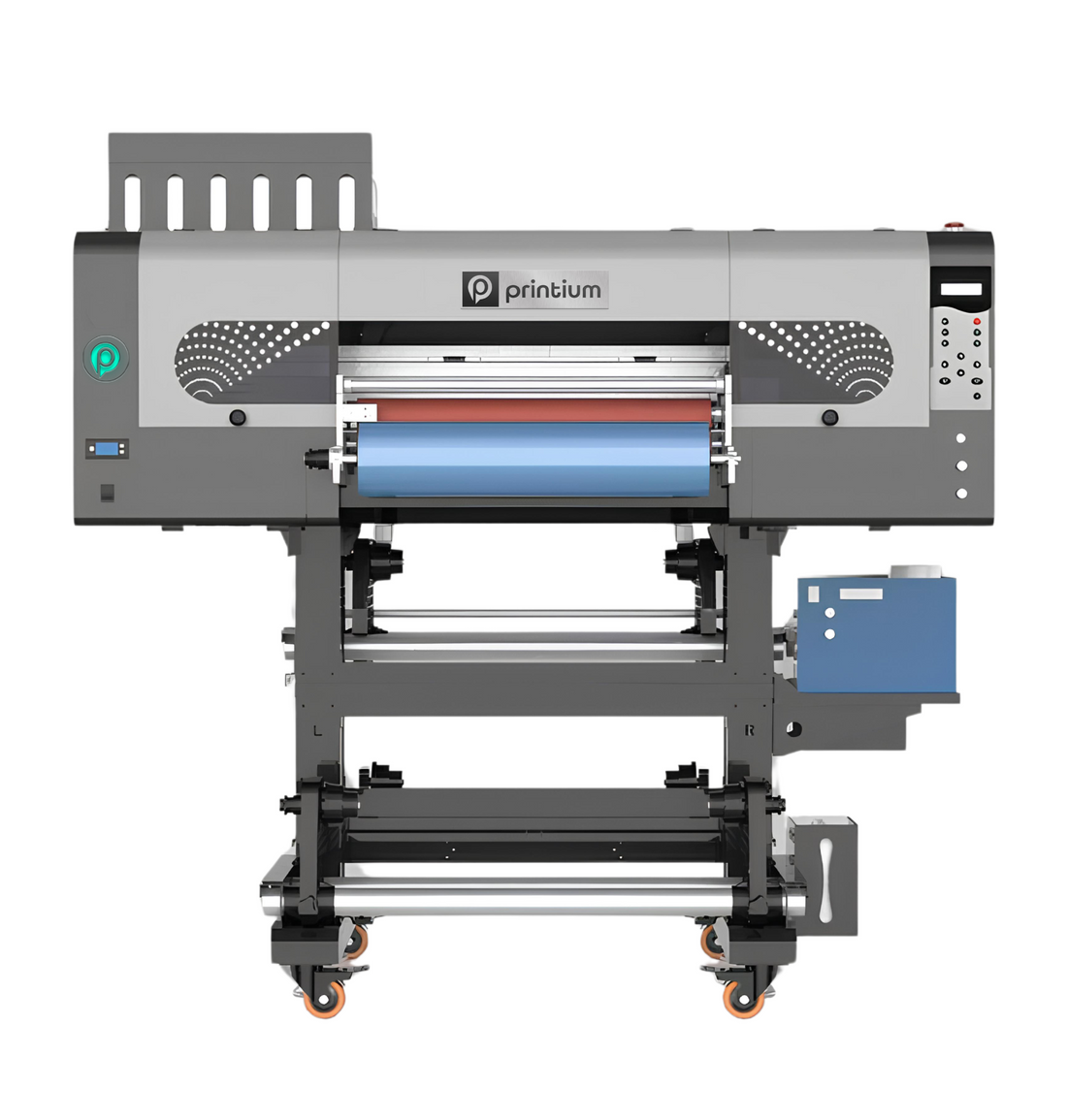

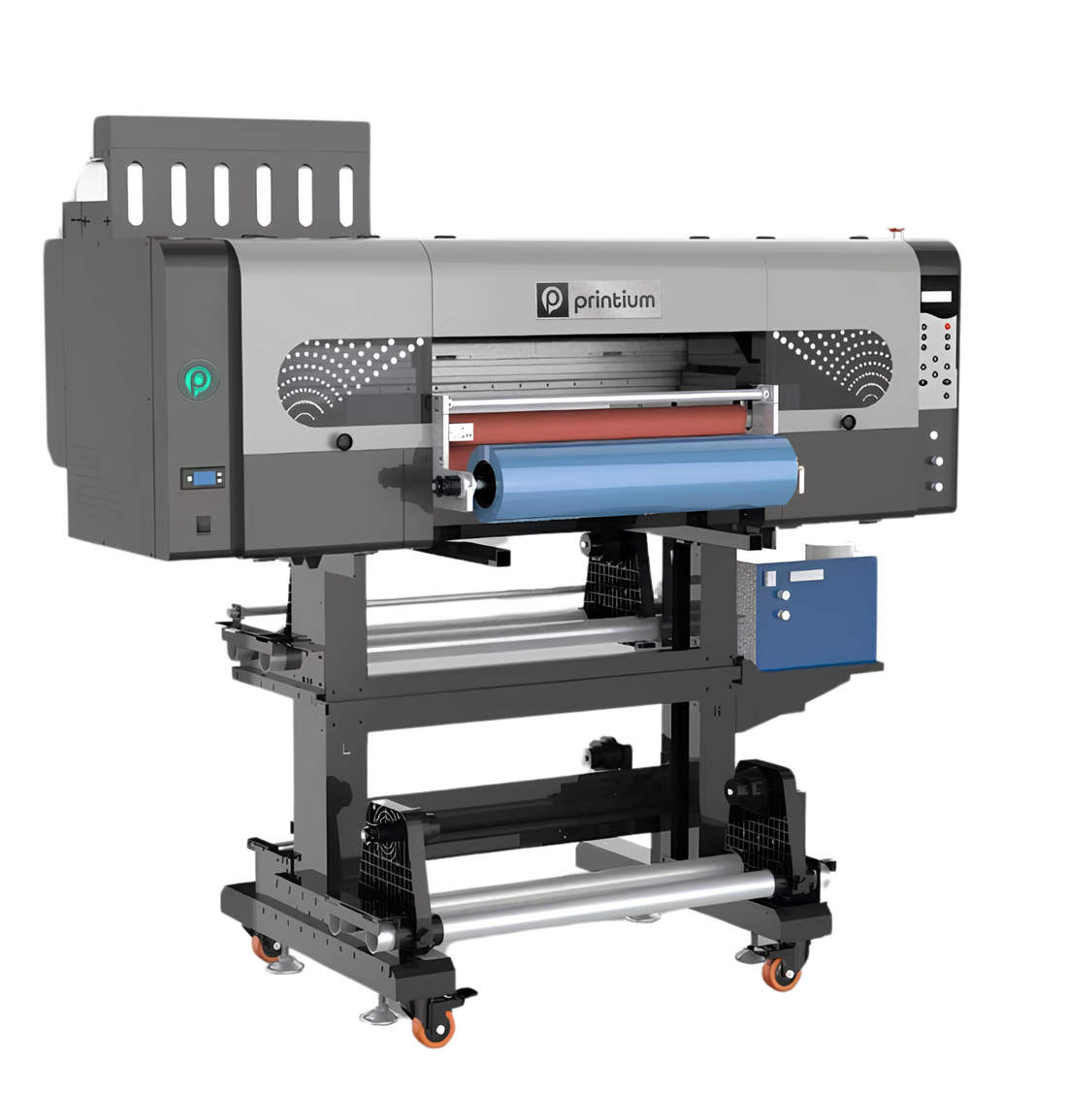

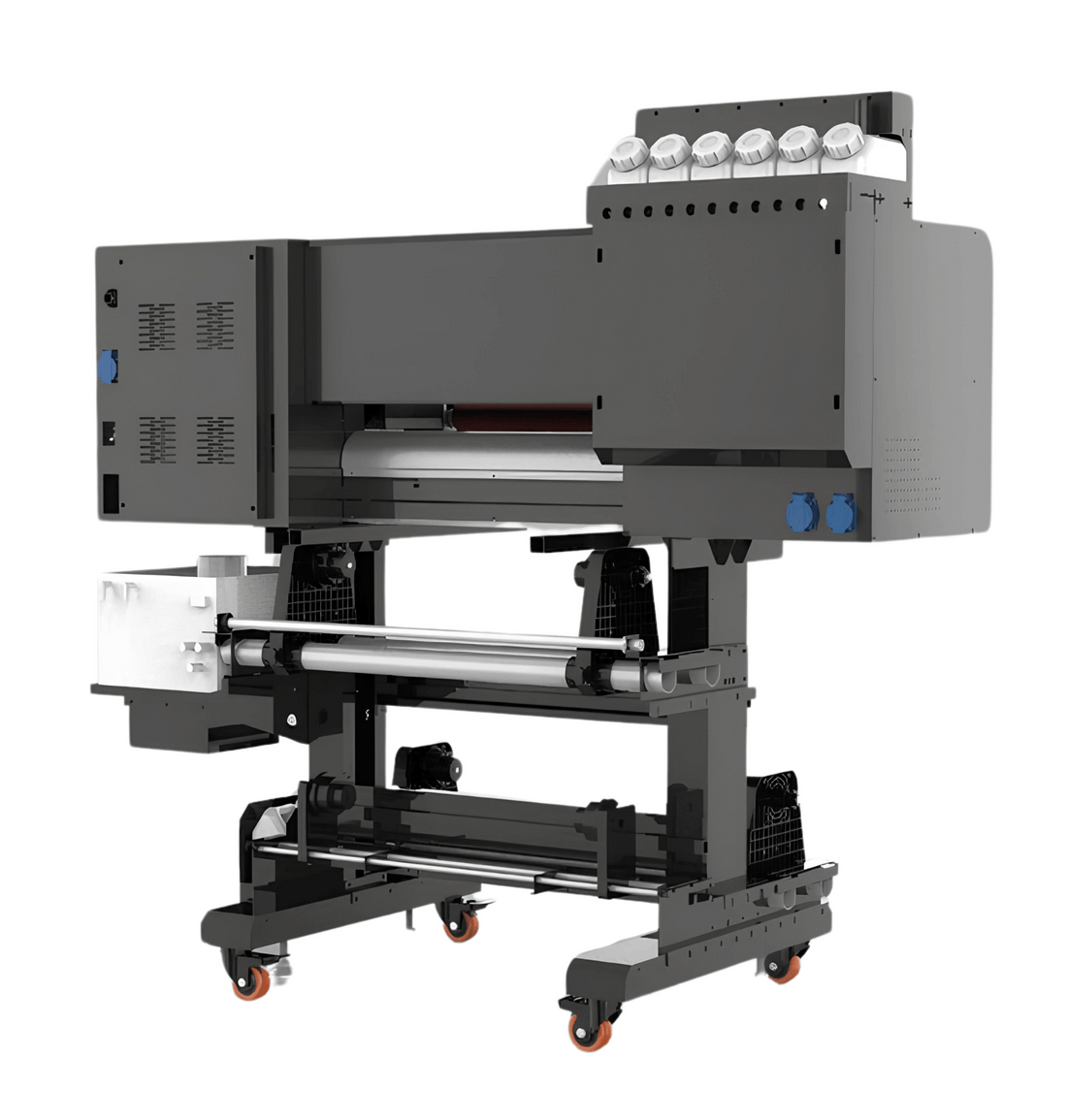

What Is the P604U UV DTF Printer?

The P604U is designed for UV DTF production rather than standard apparel DTF printing. Its role is to print and prepare transfer graphics that can be applied to suitable hard-surface products.

The workflow can include CMYK printing, white ink, a gloss or varnish layer where supported, UV curing, and lamination before the finished decal is transferred to the final object.

UV DTF Printing vs. Standard DTF Printing

Standard DTF printing is primarily associated with garment transfers that are heat pressed onto fabric. UV DTF is intended for hard-surface decoration and uses a different ink, curing, and application workflow.

Standard DTF

• Primarily used for apparel transfers
• Uses DTF film and adhesive powder
• Requires heat application to garments
• Designed around fabric decoration

UV DTF

• Designed for compatible hard surfaces
• Uses UV-curable inks
• Uses transfer film and adhesive layers
• Does not rely on a garment heat press for decal application

How the P604U UV DTF Workflow Works

The exact configuration should be confirmed in the current technical documentation, but the UV DTF process generally follows a print, cure, laminate, and transfer sequence.

1. Prepare the artwork: Confirm artwork size, resolution, transparency, and layout.
2. Process the print job: Prepare color, white, and varnish information through compatible RIP software.
3. Print onto UV DTF media: Produce the design using the machine's supported ink configuration.
4. UV cure the ink: Cure printed layers using the integrated UV system.
5. Laminate the transfer: Apply the transfer layer according to the machine workflow.
6. Cut or separate the graphic: Prepare the individual decal for application.
7. Apply to the surface: Position the decal on a clean, compatible surface.
8. Remove the carrier: Complete the transfer according to the film system instructions.

Integrated UV Curing

UV-curable inks require ultraviolet energy to cure during the printing process. The source product description identifies integrated UV curing as part of the P604U workflow.

This differs from air-drying or textile heat-curing processes and is one of the core characteristics of UV DTF equipment.

Inline Lamination for UV DTF Transfers

The supplied product description also references an integrated inline laminator. This stage prepares the printed graphics for transfer application by adding the required transfer layer.

Before purchasing, confirm:

• Supported film system
• Lamination configuration
• Roll widths
• Film loading process
• Required consumables
• Maintenance requirements

White Ink, CMYK, and Gloss Layers

UV DTF workflows may use CMYK color, white ink, and gloss or varnish layers to create different graphic effects. The supplied product content references these layers for the P604U, but the exact printhead arrangement and layer order should be confirmed in the machine's current specification sheet.

What Can You Customize With UV DTF?

UV DTF transfers are commonly considered for smooth or relatively non-porous hard surfaces. The suitability of a specific object depends on the surface material, shape, coating, texture, and transfer system.

Possible applications can include:

• Tumblers
• Bottles
• Glass containers
• Acrylic items
• Hard plastic products
• Metal items
• Promotional products
• Selected rigid merchandise

Do not assume every hard material is automatically compatible. Test the actual surface before committing to a larger production run.

Surface Preparation Matters

UV DTF decals depend on contact with the target surface, so surface preparation is an important part of the application process.

How to Apply a UV DTF Transfer

Application steps can vary by film system, but a typical transfer workflow involves positioning and pressure rather than garment heat pressing.

1. Clean the object: Prepare the target surface according to the material requirements.
2. Prepare the decal: Separate the required transfer section from the larger sheet or roll.
3. Position carefully: Align the graphic before full contact with the surface.
4. Apply pressure: Smooth the decal across the target area.
5. Work out air pockets: Apply even pressure from the center outward where appropriate.
6. Remove the carrier: Peel according to the transfer-film instructions.
7. Inspect the result: Check edges, alignment, and surface contact.

Curved and Irregular Objects Need Testing

One benefit of transfer decals is the ability to decorate objects that cannot easily pass through a flat printing system. However, tight curves, corners, ridges, recessed areas, textured surfaces, and compound curves can make application more difficult.

Evaluate:

• Object curvature
• Graphic dimensions
• Surface texture
• Available flat or smooth area
• Transfer flexibility
• Application direction

P604U for Custom Merchandise Production

A UV DTF printer can expand a print shop's workflow beyond apparel by supporting selected hard-surface merchandise applications.

Potential project categories include:

• Promotional merchandise
• Personalized drinkware
• Branded containers
• Retail product labels
• Event merchandise
• Corporate promotional products

The best applications depend on the actual surface compatibility and production requirements.

Plan the Complete UV DTF Production System

The printer is only one part of a UV DTF workflow. Before purchasing, review all required consumables, software, electrical needs, ventilation, maintenance, and production-space requirements.

Depending on the configuration, planning may include:

• UV DTF film system
• CMYK inks
• White ink
• Gloss or varnish ink
• Compatible laminating film
• RIP software
• Computer or workstation
• Cleaning and maintenance supplies
• Appropriate ventilation
• Electrical infrastructure

RIP Software for UV DTF Printing

RIP software can manage color, white ink, varnish layers, image positioning, resolution, and print queues. Confirm which software, version, license, and operating system are supported by the current P604U configuration.

Before installation, verify:

• Supported RIP software
• License type
• Computer requirements
• Color-channel support
• White ink controls
• Varnish controls
• File format support

Maintenance for a UV DTF Printer

UV DTF equipment uses specialized inks, printheads, curing components, and film systems. Maintenance should follow the manufacturer's current instructions for the exact machine configuration.

Common areas to monitor can include:

• Nozzle condition
• White ink management
• Ink levels
• UV lamp condition
• Film feed
• Lamination alignment
• Capping and cleaning systems
• Waste ink system

Test Surface Compatibility Before Production

The product description references surfaces such as glass, metal, plastic, and similar hard materials. However, surface finish and coatings can change adhesion behavior.

Before accepting a large order, test the actual product blank and inspect:

• Initial adhesion
• Edge contact
• Surface appearance
• Graphic alignment
• Response to normal handling

UV DTF Printer vs. Direct-to-Object UV Printer

A UV DTF printer creates a transfer that is later applied to the object. A direct-to-object UV printer prints directly onto the item's surface.

That difference can affect:

• Object shape limitations
• Fixture requirements
• Production workflow
• Application method
• Artwork placement

Choose the workflow according to the products you intend to decorate and the production environment you want to build.

P604U UV DTF Printer vs. P604 DTF Printer

The P604U and P604 serve different production purposes.

• P604U: UV DTF transfer production for compatible hard surfaces.
• P604: Standard DTF transfer production primarily for apparel workflows.

This distinction is important because the machines use different consumables, curing processes, and final application methods.

Frequently Asked Questions About the P604U UV DTF Printer

Build a UV DTF Hard-Surface Production Workflow

The P604U UV DTF Printer is designed for businesses expanding into hard-surface transfer production. Evaluate the complete system, including UV curing, lamination, film, ink configuration, RIP software, maintenance, workspace requirements, and the types of products you plan to customize.
