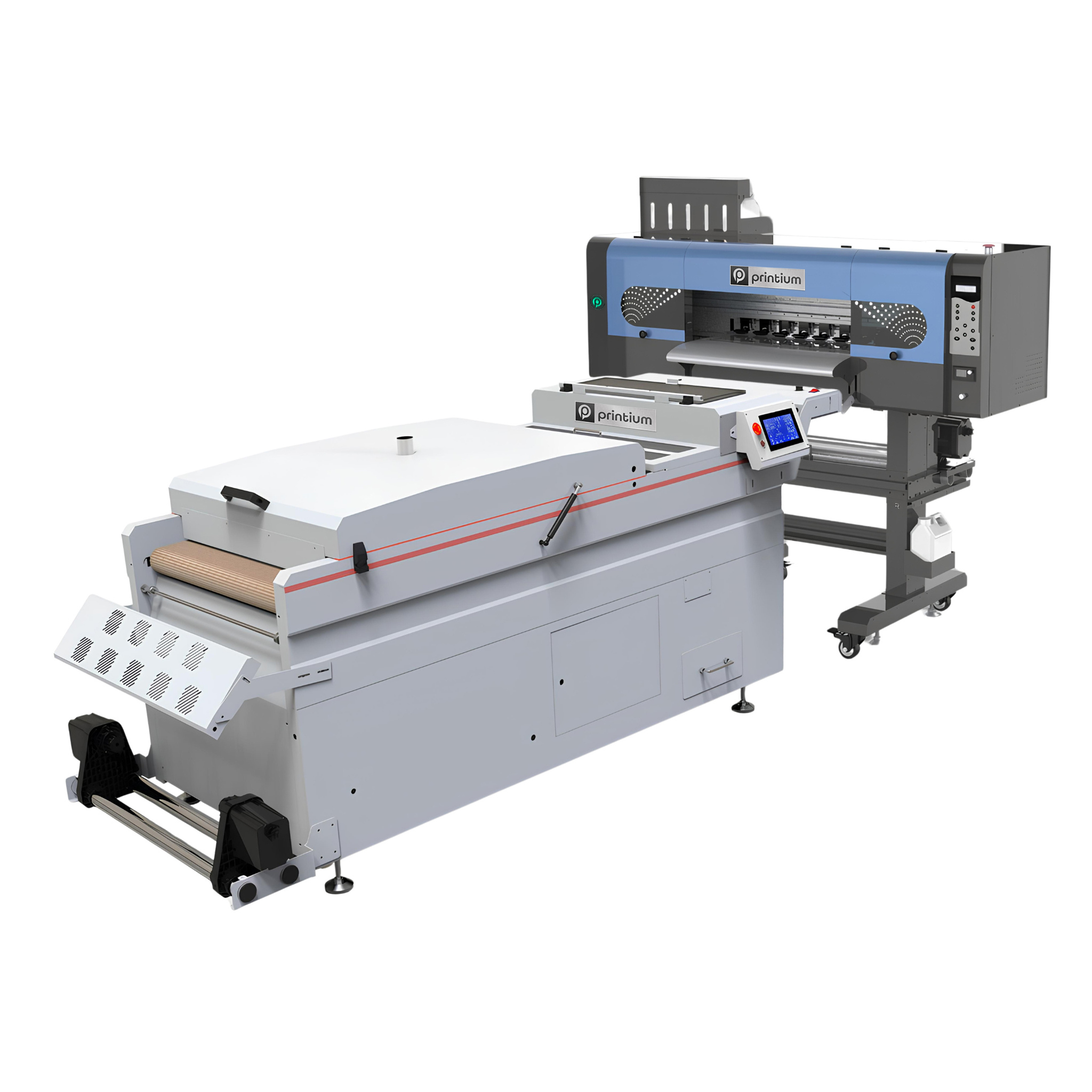

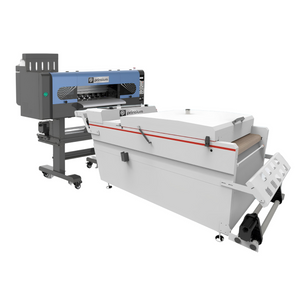

P604 24" 4 Head DTF Printer + P6501 DTF Powder Shaker Dryer

P604 DTF Printer:

• Get Professional Help: If needed, seek professional assistance for installation to ensure proper setup.
• Unpack with Caution: Be cautious during unpackaging, as the printer is heavy. It’s recommended to have at least two people for safe handling.
• Follow Installation Guide: Refer to the provided installation guide and documentation from the seller or technical service for a smooth setup process.
• Check Operating Area: Ensure the printer is placed in an area with the correct temperature (70°F - 90°F) and humidity (45% - 65%) to maintain optimal performance. Ensure adequate ventilation to manage potential fumes.
• Connect Printer and Software: Install the RIP software (Maintop or FlexiPrint) on a compatible computer and connect the printer to the system.
• Load Media Correctly: Carefully load the PET film and adjust the media guides for proper alignment.
• Test Print: Run a test print to ensure everything is functioning correctly before starting full production.
• Regular Maintenance: Clean the printheads regularly and check ink levels to ensure smooth operation.

P6501 DTF Powder Shaker Dryer:

• Usage: Connect the DTF printed films to the machine, and the automatic belt system will slide them through the shaker dryer. Use the automatic powder dispenser for even powder distribution. Set the curing temperature based on the material to ensure uniform powder application and optimal curing.
• Powder Management: Use the motor-driven brush and shaker lever to control the powder and remove excess hot melt powder efficiently. This helps maintain consistent quality and prevents waste.
• Heating & Drying: Ensure the quartz infrared heat drying tubes and the front heat plate are set to optimal temperatures for even curing. Monitor the drying system to maintain appropriate heat levels for the material being processed.
• Cooling System: Activate the fan air cooling system after drying to cool the media and prevent warping or bulging, ensuring high-quality results.
• Maintenance: Regularly clean the shaker dryer and check the powder recycling drawer for effective operation and minimized waste. Proper maintenance helps improve performance and longevity.
• Power Connection: Use a 220V AC power supply, ensuring the current does not exceed 36A. The rated power is 7.9 KW, with energy consumption between 3.5 KW and 7.9 KW depending on use.

• Printium P604 24" 4-Head DTF Printer
• Printium P6501 - DTF Powder Shaker Dryer
• RIP software for PC (Customers can select either Maintop or FlexiPrint)
• 6-month limited warranty
• USA based support via phone or email


The following supplies will be delivered free of charge with this printer bundle:

• 1 roll of Instant Peel DTF Film
• 2 bottles of DTF White Ink, 1000 ml (33.8 fl oz) each
• 1 bottle each of DTF Ink – Cyan, Magenta, Yellow, and Black, 1000 ml (33.8 fl oz) per color
• 2 packs of DTF Hot Melt Powder, 1 kg (2.2 lb) each
• 1 bottle of Printhead Cleaning Solution, 100 ml (3.38 fl oz)
• 1 bottle of Head Care Solution, 1000 ml (33.8 fl oz)
• 1 pack of Cleaning Foam Swabs
• 1 pack of Printhead Wiping Cloths
• 1 small container of White Grease Lubricant

DTF Print Depot offers a limited 6-month warranty for this product, covering non-consumable parts under normal use. Consumable parts, such as printheads, printhead covers, dampers, capping stations, wiper blades, belts, bulbs, filters and, other similar wear-and-tear components are not covered under the warranty. Use of any ink, film, powder, or other supplies that DTF Print Depot does not sell or distribute will void warranty coverage. Please note that the sale of this product is considered final. However, the warranty is provided to address any qualifying issues with the equipment. The warranty begins from the date of purchase. During the warranty period, DTF Print Depot will provide remote technical support and, if available, repair or replacement video guidance for any issues related to parts covered under the warranty. DTF Print Depot is not responsible for damages caused during shipping, but all shipments are insured. If you receive a damaged order, contact us immediately to create a ticket. We will coordinate with the shipping company to resolve the issue. Resolution or refund from the shipping company may take approximately 50–60 business days. By purchasing and using this product, you acknowledge and accept the terms and conditions outlined in this section. For warranty claims or further assistance, please contact us directly.

Bundle: P604 24" 4 Head DTF Printer + P6501 DTF Powder Shaker Dryer

P604 DTF Printer Specifications:

• Model: Printium P604 24" 4-Head DTF Printer
• Product Dimensions: Length: 69.1 inches, Width: 30.3 inches, Height: 63 inches
• Product Weight: 335 lbs
• Package Dimensions: Length: 84.5 inches, Width: 34.5 inches, Height: 30 inches
• Package Weight: 400 lbs
• Voltage:220V/110V(+5%), 50Hz/60Hz
• Printing Modes: 4PASS / 6PASS / 8PASS
• Printhead: Epson I3200-A1, 4 pcs
• Media Type: PET Film
• RIP Software: Maintop and FlexiPRINT
• Supported OS: Windows 8 or newer
• Computer Specs: Intel Core i5 11th Gen or higher / AMD Ryzen 5 5000 series or higher, 16GB RAM or more, 512GB SSD or larger
• Operating Temperature: 70°F - 90°F (20°C - 30°C)
• Operating Humidity: 45% - 65%

P6501 DTF Powder Shaker Dryer Specifications:

• Model: Printium P6501 DTF Powder Shaker Dryer
• Available Width: 0-23.6 inches (0-600 mm)
• Applicable Media: Nylon, chemical fiber, cotton, leather, swimsuit, diving suit, PVC, EVA etc.
• Powder Control: Powder disperser, powder shaker and powder amount control
• Heat and Dry Function: Front heat plate & Top heater, Lengthen dry fixation, cold fans
• Heating: 6pcs 220V quartz infrared bulbs
• Cooling: 9 pcs air cooling fans
• Media Transmission: NEW Belt Type, vacuum absorption conveyor belt with LCD control and bidirectional movement.
• Take up Function: Automatic Inductive
• Product Dimensions: Length: 101.9 inches, Width: 39.5 inches, Height: 42.6 inches
• Product Weight: 595 lbs
• Package Dimensions: Length: 86.6 inches, Width: 44.5 inches, Height: 45.1 inches
• Package Weight: 730 lbs
• Power Requirements: Rated Voltage: 220V, Rated Current: 36A, Rated Power: 7.9 KW, Energy Consumption: 3.5 KW-7.9 KW

Due to the nature of this product, orders will be processed and shipped within 3 business days. Please allow this additional time for handling to ensure that your equipment is carefully prepared and packaged for safe transit. However, there may be times when shipments are delayed due to unexpected situations. In such cases, DTF Print Depot will provide you with updated information via email or phone.

Currently, DTF Print Depot exclusively offers shipping within the United States. We are committed to providing the best possible service to our domestic customers and do not ship internationally at this time.

For all orders, we will handle freight shipping to the given address. Once the product has been loaded onto the freight carrier, delivery may take 5–12 business days depending on the distance, routes, and accessibility of the destination. In some cases, severe weather conditions or other unforeseen factors may extend delivery times.

You can track your order by clicking the tracking number provided in your order details after shipment. This will give you an estimated delivery date as well as updates from the carrier about the status of your shipment.

Certain equipment, such as printers, is classified as oversized and requires special handling. We take extra precautions when packaging and shipping these products to ensure their safety during transit. To avoid damage and ensure the safety of both the equipment and personnel, we recommend using a pallet jack or forklift when moving oversized pallets upon arrival.

We appreciate your understanding and cooperation to ensure a smooth and secure delivery experience.

Important Delivery Instructions:

This product must arrive securely packaged in a sealed wooden crate, unless otherwise stated or pre-arranged.

If the crate or product is visibly damaged upon delivery:

DO NOT accept the delivery immediately.

Instead, follow these steps carefully:

•
  Ask the delivery driver to document the damage by writing a Damage Report.

•
  Take clear photos of the damaged crate/product and the Damage Report.

•
  Do not sign the Proof of Delivery (POD) without marking the crate or product as “DAMAGED”.

•
  Notify us immediately via phone or email.

•
  Complete the Order Support Request Form on our website to officially open a case. This allows us to follow up with the carrier.


⚠️ IMPORTANT: If damage is not clearly indicated on the Proof of Delivery (POD) at the time of receipt, we will not be able to file a claim with the carrier. This will result in no compensation or replacement. Your compliance with this process is essential.

For more details, check out our Shipping Policy.
